welded wire mesh fence design-Fence net equipment

The barrel of the fence mesh, the coupling ribs and the left and right hook plates. The cylindrical column, the connecting rib and the left and right hook plates are integrally formed into a curved plate, and the two faces of the plate have a plurality of notches to form a gap between the hook plates. Because the hook plate is arranged around the cylinder, the hook plate and the cylinder are formed by an integral plate by a cold bending roller, and the cross section of the cylinder is a semi-elliptical, rectangular or triangular shape, thereby making the fence mesh The structure of the coupling column is simple, the equipment is used conveniently, and the bending strength of the column is increased. In addition: the hook plate of the fence meshing column is curved to the inner side along the arc, and cooperates with the convexity of the straight side of the semi-elliptical cylinder to prevent the movement of things and ensure the safety of the fence, which together constitutes a perfect The streamlined appearance.

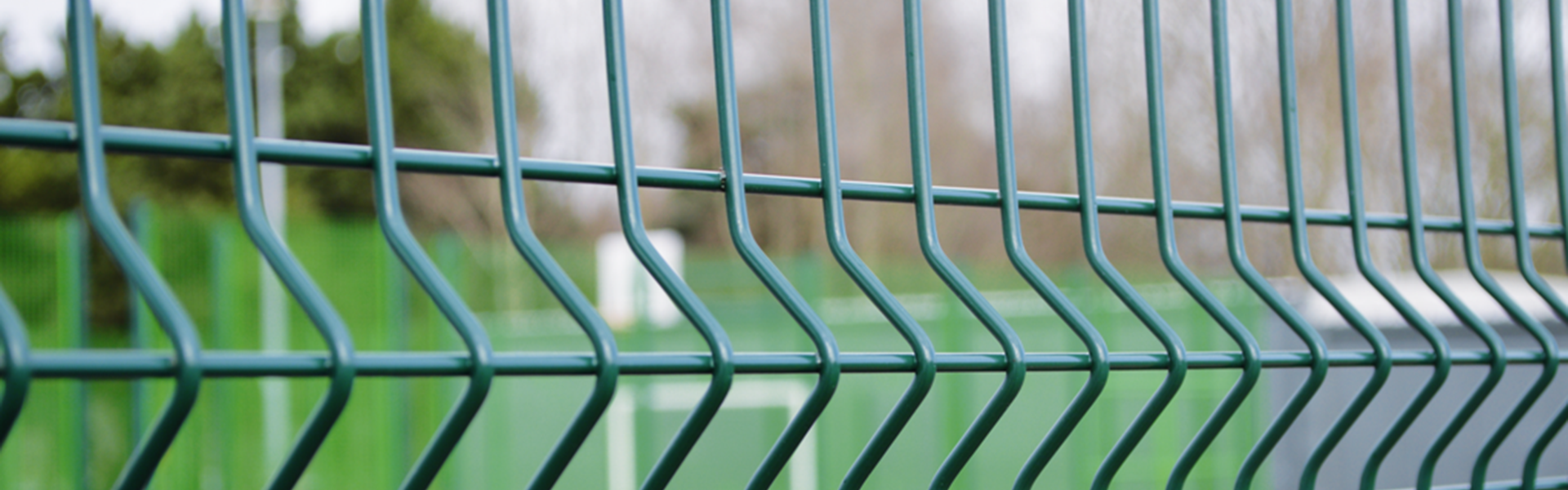

The road fence net is welded by 2.5mm cold drawing, and the horizontal wire of each mesh has a curved arc to add strength. The mesh and the column are connected by stainless steel clips on the spot, and the column is welded with steel for the cap. The column and the diagonal bottom are made of cast-in-place concrete. The welded net fence net column and mesh are made of zinc-plated in the dip-coating method. The welded net fence net is anti-corrosion, anti-aging, anti-sun, flame retardant. Beautiful. The number is long. The equipment is concise and convenient. Specification (mm) column: 48 × 1.5 × 2300 diagonal support: 38 × 1.5 × 2200 mesh: horizontal wire 2.5 × 30000 vertical wire 2.5 × 1800 clip: 3.5 high-strength stainless steel wire. Welding net fence net use:: highway, railway, airport, dock protective fence.



       Because the hook plate is arranged around the cylinder, the hook plate and the cylinder are formed by an integral plate by a cold bending roller, and the cross section of the cylinder is a semi-elliptical, rectangular or triangular shape, thereby making the fence mesh The structure of the coupling column is simple, the equipment is used conveniently, and the bending strength of the column is increased. In addition: the hook plate of the fence meshing column is curved to the inner side along the arc, and cooperates with the convexity of the straight side of the semi-elliptical cylinder to prevent the movement of things and ensure the safety of the fence, which together constitutes a perfect The streamlined appearance.
