Introduction and installation of highway fence

Introduction and installation of the highway network How much is a meter?

Highway fence mesh weaving: low carbon steel wire, braided and welded.

Features of highway guardrail network: anti-corrosion, anti-aging, anti-sun, weather resistance and so on.

The anti-corrosion forms of the fence mesh are electroplated, hot-plated, spray-coated, dip-coated, and dip-coated after galvanizing.

The effect of the highway fence network (1) The structure is reasonable and the function is excellent.

(2) Coordinate with the landscape, the form is beautiful.

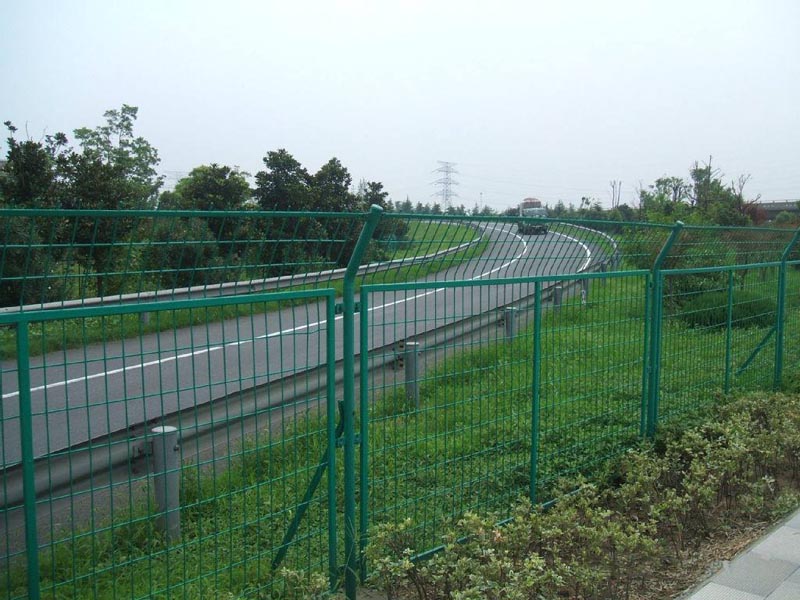

Highway guardrail network is mainly used in highways, railways, airports, stations, service areas, bonded areas, open storage yards, ports and other fields. Its products have the advantages of beautifying environment, sturdy and durable, not easy to fade, deformation and so on.

Highway fence mesh size: 1700mm high × 2500mm wide / 1800mm high × 2500mm wide / 1800 × 3000 / 2000 × 3000 / 1500 × 2500;

Wire diameter (welded wire diameter) range: 2.5mm- 6.0mm; common specifications 3.0mm, 3.2mm, 3.5mm, 3.8mm, 4.0mm;

Mesh size: 25 × 75mm - 150 × 300mm; 50 × 100 / 75 × 150 / 50 × 200 / 60 × 150 is the most common;

Column and frame: frame: 20×30 or 20×40mm rectangular section welded pipe; 0.8/1.0/1.2/1.5mm thick square pipe;

Column: 48mm × 1.0 / 1.2 / 1.5 / 2.0mm thick round tube 60 * 60 * 3mm square tube. The top end is covered with a plastic rain cap or welded cover.

Highway fence mesh installation accessories: mesh and column with screws and various special metal clips, plastic clips or connected with wire. The screws used are all automatic anti-theft sizes and are easy to install. Can be customized according to user needs!

The highway fence network can be divided according to its style: bending barrier, frame isolation barrier, wave isolation grid, double-circle isolation barrier, double-sided wire isolation barrier and so on.

The color of the highway fence mesh is optional: white, green, dark green, grass green, black, blue, yellow and so on.

Anti-corrosion treatment, after derusting, grinding, passivation, vulcanization and other processes, using galvanized plastic coating, the color is green, the coating thickness is 0.6-1.6mm, and the plating powder adopts imported weather-resistant resin with better anti-aging performance. Powder, the coating must be of the same color, smooth surface, no sag, drip or excess agglomeration. The surface of the plated parts shall be free from defects such as leakage plating and exposed iron.
